The Story

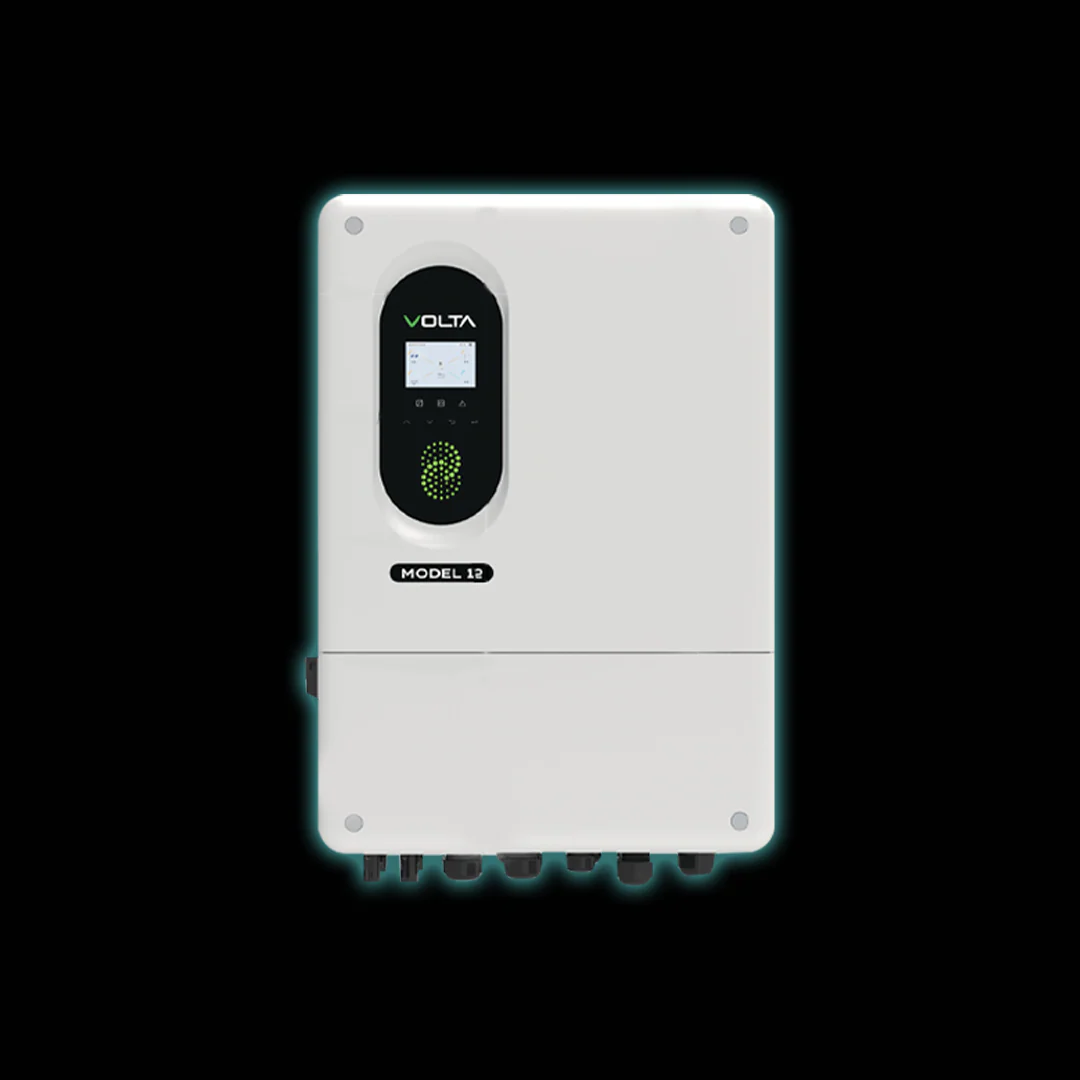

The Volta 12kW Hybrid Inverter is a high-performance, single-phase energy solution designed for residential and commercial solar systems. Engineered for reliability, efficiency, and intelligent energy management, this inverter supports both lithium and lead-acid batteries and integrates seamlessly with solar panels and generators.
Key Features:
- High Power Capacity: Supports up to 20,000W PV input and delivers 12kW nominal AC output power.
- Advanced Hybrid Technology: Combines solar, battery, and grid power with seamless switching (<4ms UPS-level).
- Smart Load Management: CT compatible with responsive load control within 0.3 seconds.
- Peak Performance: 200% PV oversizing and 110% AC output capability; 200% peak EPS apparent power for 10 seconds.
- Efficient Charging: Max charging/discharging current of 250A for rapid battery cycling.
- Wide MPPT Range: Operates efficiently across 50–550V with dual MPPTs (2/2 strings).
- Durable & Safe: IP65-rated enclosure, integrated SPD, optional AFCI protection, and battery terminal temperature detection.
- Flexible Compatibility: Generator-ready and supports high-power solar panels with 16A DC input current.
- User-Friendly Interface: LED + LCD display with multiple communication options including CAN, RS485, USB, WiFi+LAN.
- Certified & Compliant: Meets global standards including EN IEC 62109-1/-2, IEC 61727, IEC 62116, and more.
Technical Specifications:
- Nominal Voltage: 220/230/240V, 50/60Hz
- Battery Voltage Range: 40–60V (Nominal 48V)
- Cooling: Smart cooling system
- Dimensions: 652.5 × 462.5 × 259.8 mm
- Weight: 37.4 kg
- Warranty: 5 years
Applications:
Ideal for grid-tied and off-grid solar installations, backup power systems, and energy storage solutions requiring high efficiency, fast switching, and intelligent control.
Description
The Volta 12kW Hybrid Inverter is a high-performance, single-phase energy solution designed for residential and commercial solar systems. Engineered for reliability, efficiency, and intelligent energy management, this inverter supports both lithium and lead-acid batteries and integrates seamlessly with solar panels and generators.
Key Features:
- High Power Capacity: Supports up to 20,000W PV input and delivers 12kW nominal AC output power.
- Advanced Hybrid Technology: Combines solar, battery, and grid power with seamless switching (<4ms UPS-level).
- Smart Load Management: CT compatible with responsive load control within 0.3 seconds.
- Peak Performance: 200% PV oversizing and 110% AC output capability; 200% peak EPS apparent power for 10 seconds.
- Efficient Charging: Max charging/discharging current of 250A for rapid battery cycling.
- Wide MPPT Range: Operates efficiently across 50–550V with dual MPPTs (2/2 strings).
- Durable & Safe: IP65-rated enclosure, integrated SPD, optional AFCI protection, and battery terminal temperature detection.
- Flexible Compatibility: Generator-ready and supports high-power solar panels with 16A DC input current.
- User-Friendly Interface: LED + LCD display with multiple communication options including CAN, RS485, USB, WiFi+LAN.
- Certified & Compliant: Meets global standards including EN IEC 62109-1/-2, IEC 61727, IEC 62116, and more.
Technical Specifications:
- Nominal Voltage: 220/230/240V, 50/60Hz
- Battery Voltage Range: 40–60V (Nominal 48V)
- Cooling: Smart cooling system
- Dimensions: 652.5 × 462.5 × 259.8 mm
- Weight: 37.4 kg
- Warranty: 5 years
Applications:
Ideal for grid-tied and off-grid solar installations, backup power systems, and energy storage solutions requiring high efficiency, fast switching, and intelligent control.
