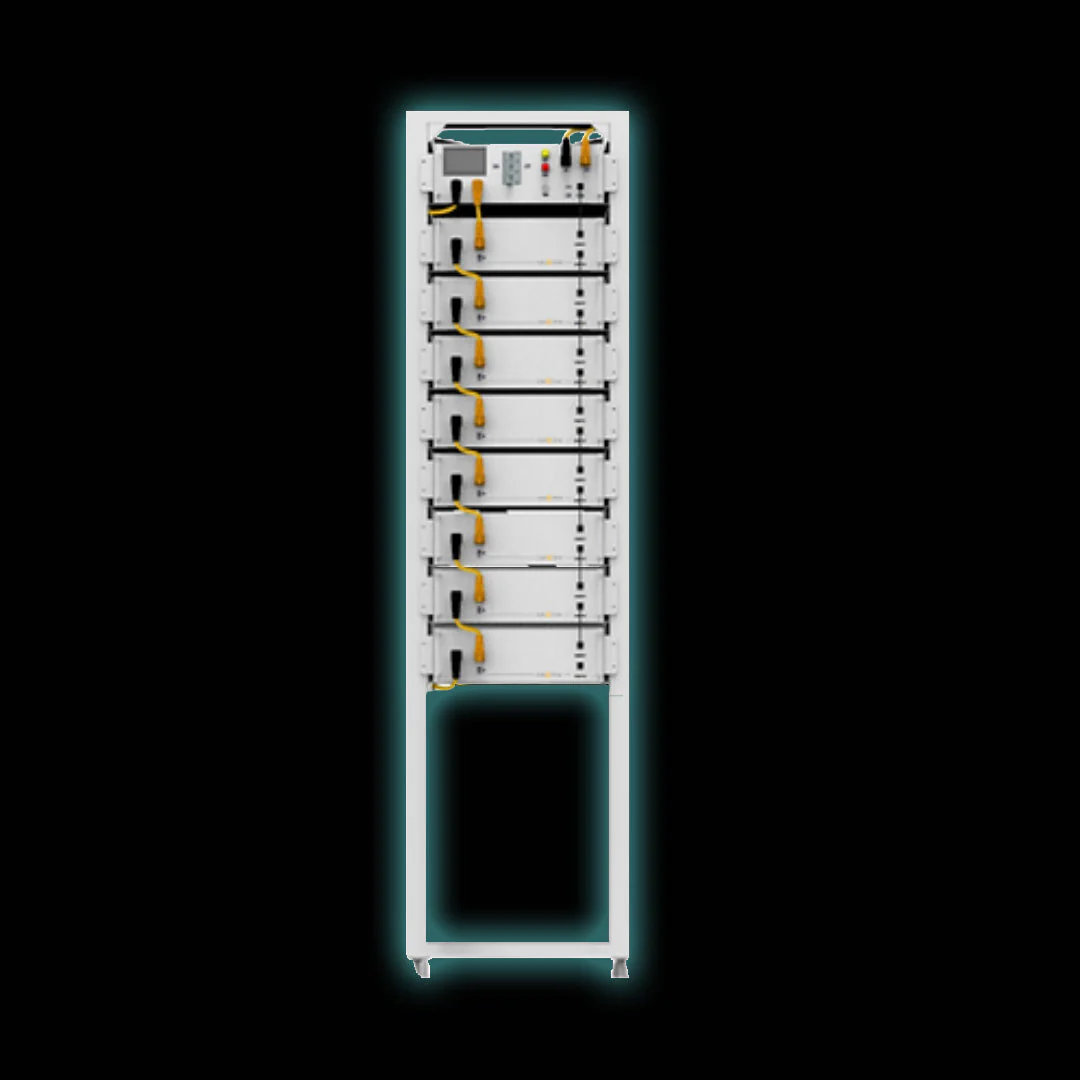

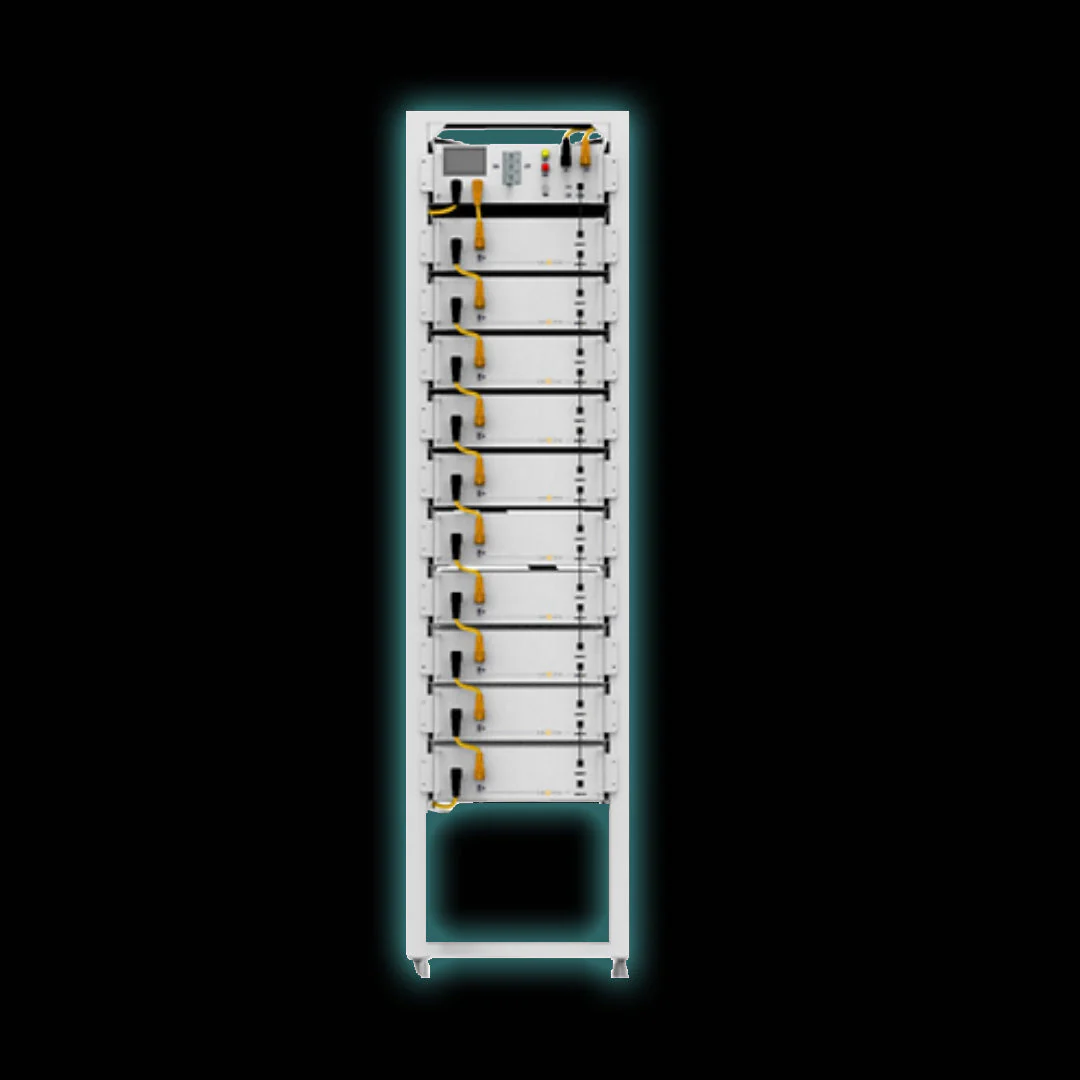

Sunsynk High Voltage Battery – 5.12kW Single Module with Rack & BMU
Experience high-performance energy storage with the Sunsynk High Voltage Series, designed for scalable, efficient, and safe power solutions. This 5.12kW single module is part of a modular system that can be expanded up to 61.44kWh, making it ideal for residential, commercial, and industrial applications.
Key Features:
- Modular Design – Start with a 5.12kW module and scale up to 61.44kWh with 12 modules.
- High Voltage Efficiency – Operating voltage range: 538V to 691V.
- Fast Charge/Discharge – 1C rate with up to 100A current.
- Advanced Lithium Technology – Uses LiFePO₄ (Lithium Ferro-Phosphate) for safety and longevity.
- Long Lifespan – Backed by a 10-year warranty.
- Compact & Durable – IP20-rated enclosure with robust build quality.
- Smart Integration – Includes Battery Rack and BMU (Battery Management Unit) for seamless system control.
Technical Specifications:
- Energy Capacity: 5.12kWh per module
- Module Capacity: 100Ah
- Operating Voltage: 538V–691V
- Charge/Discharge Current: Max 100A
- Temperature Range: Charge: 0–55°C / Discharge: -20–55°C
- Dimensions (13-level rack): 589×590×2240mm
- Weight: 44–85kg per module / 628kg total (12 modules + rack)
- Altitude: ≤2000m
- Humidity: 5%–85% RH
- Certifications: EN/IEC 61000-6, IEC62619, UN38.3
Ideal For:
- Large-scale solar energy systems
- Commercial and industrial backup power
- High-voltage off-grid installations
