High-Performance Energy Conversion for Commercial & Industrial Applications

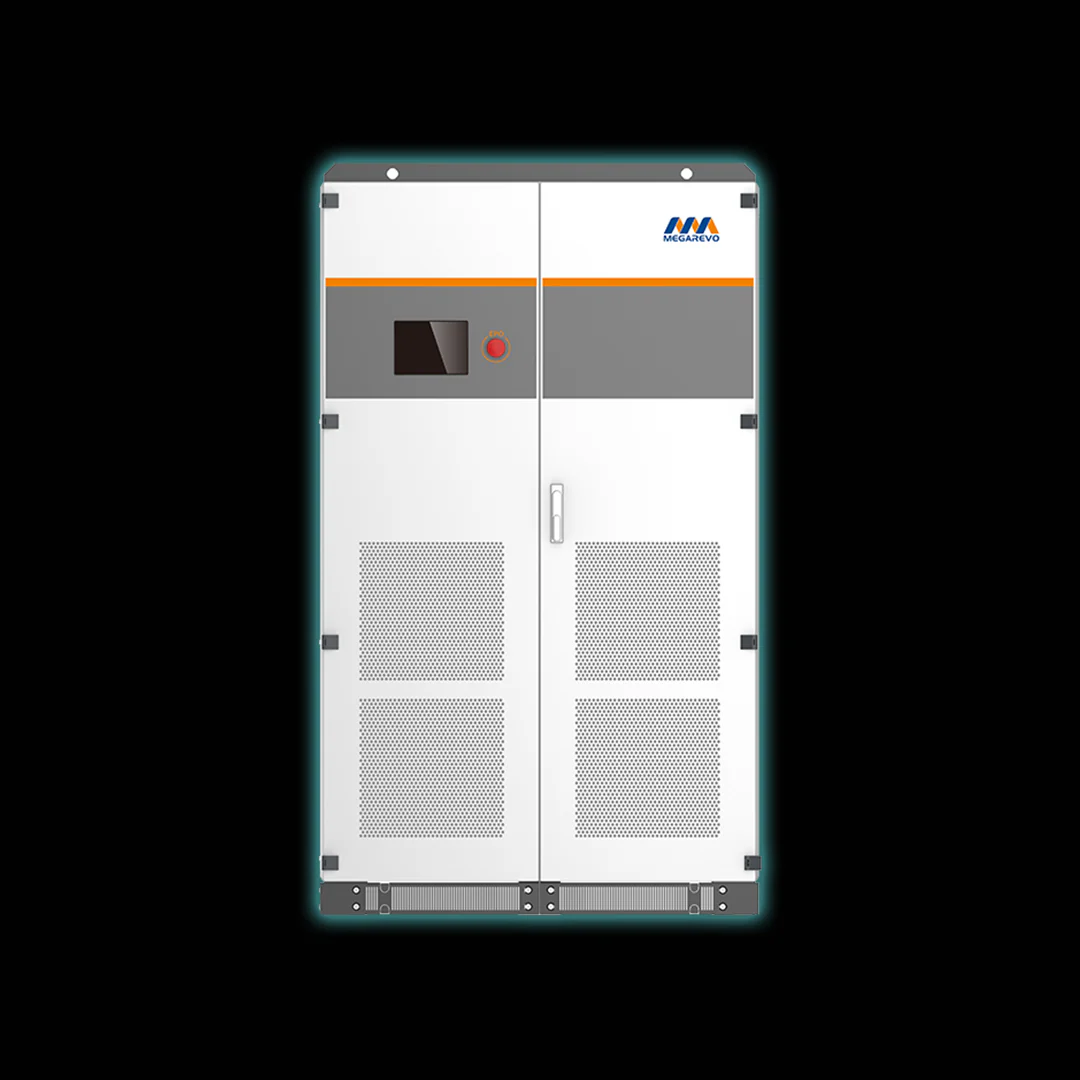

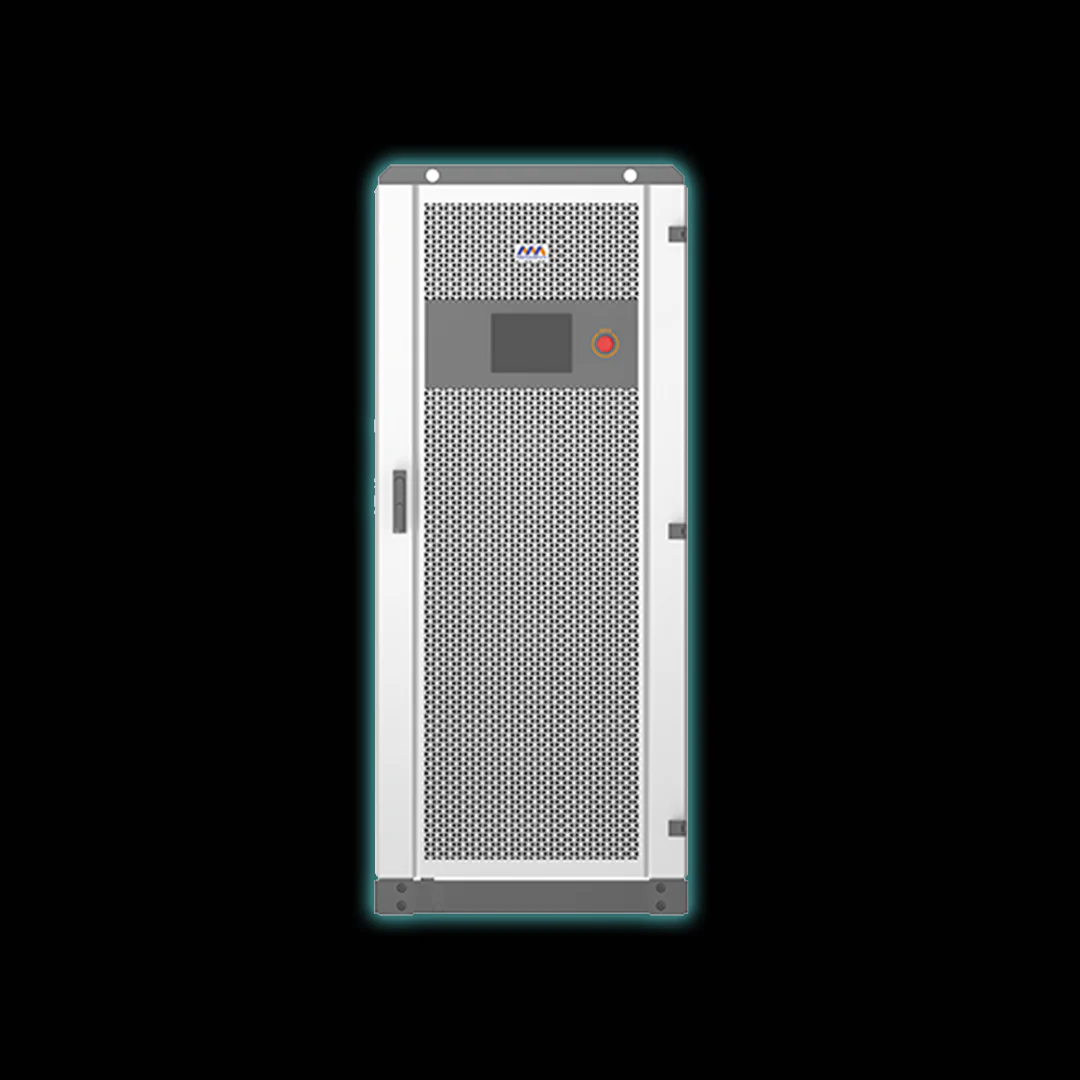

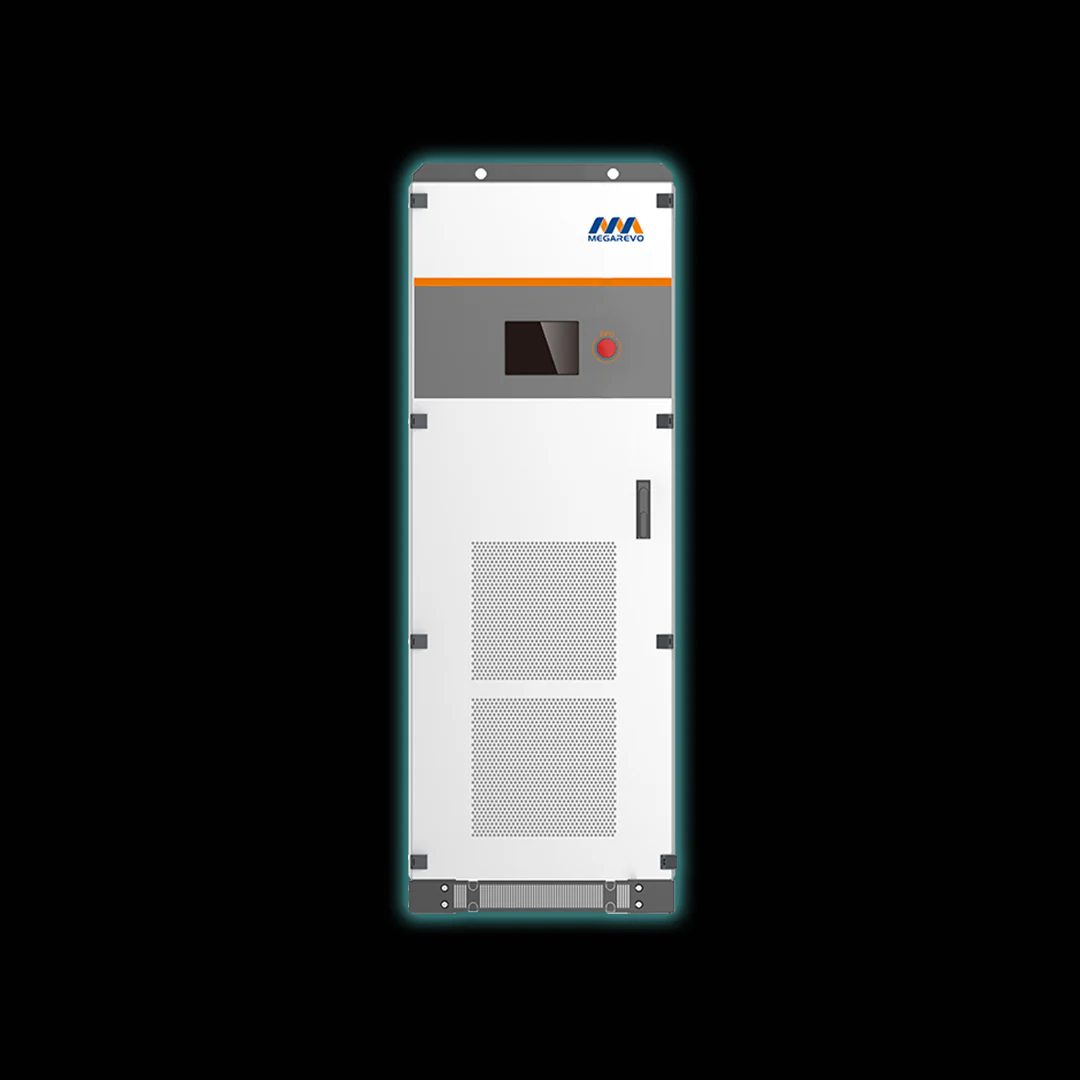

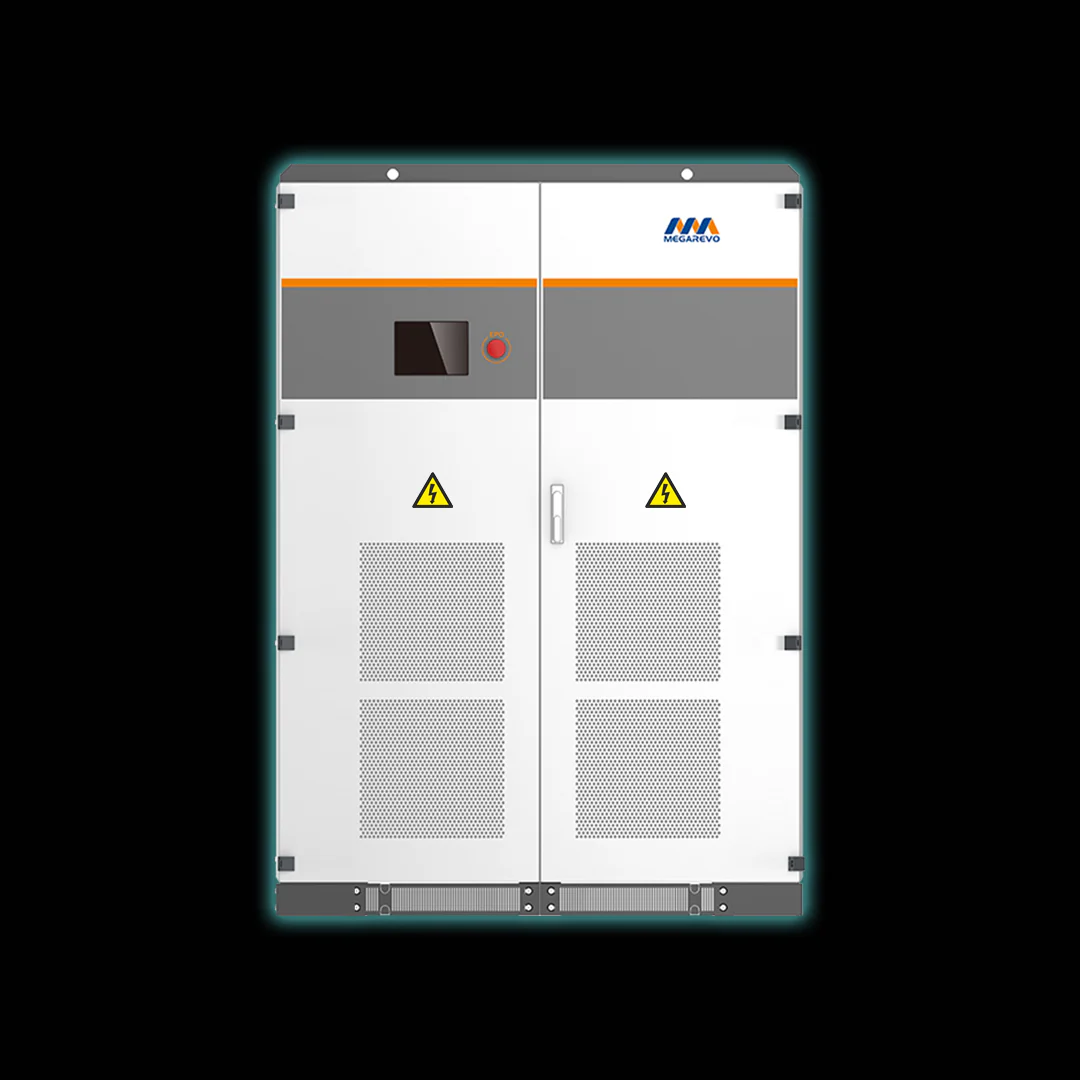

The Megarevo Power Conversion System (PCS) is designed for large-scale Commercial & Industrial (C&I) energy storage and PV charging stations, delivering exceptional efficiency and reliability. Featuring a built-in isolation transformer and Static Transfer Switch (STS), this system ensures safe, stable, and flexible power management across diverse scenarios.
Key Features
- Built-in Isolation Transformer – Superior safety and adaptability to impact loads.
- Multiple Operating Modes – Configurable for on-grid and off-grid applications.
- Reactive & Active Power Control – Fully adjustable for optimized performance.
- High Efficiency – Achieves up to 97.5% maximum efficiency.
- Parallel Connection Support – Scale effortlessly with multiple units.
- Redundant Auxiliary Power Design – Ensures continuous operation and reliability.
Technical Specifications
| Model | Rated Power | Dimensions (W×D×H) | Weight |
|---|---|---|---|
| MEGA0030TS | 30 kW | 800 × 800 × 1,900 mm | 621 kg |
| MEGA0050TS | 50 kW | 800 × 800 × 1,900 mm | 712 kg |
| MEGA0100TS | 100 kW | 800 × 800 × 1,900 mm | 936 kg |
| MEGA0150TS | 150 kW | 800 × 800 × 1,900 mm | 1,057 kg |
| MEGA0250TS | 250 kW | 1,200 × 800 × 2,050 mm | 1,582 kg |
| MEGA0500TS | 500 kW | 1,600 × 1,050 × 2,050 mm | 2,665 kg |
Other Highlights:
- DC Voltage Range: 250V – 850V
- AC Rated Voltage: 400V, 50/60Hz
- Ingress Protection: IP21
- Operating Temperature: -30°C to +55°C
- Certifications: IEC/EN 62109, EN 62477, EN 50549, NRS 097, GB/T standards
Applications
- C&I Energy Storage Systems
- PV Charging Stations
- Microgrid Solutions
Why Choose Megarevo PCS?
With highest power density, automatic on/off-grid switching, and advanced communication interfaces (RS485, CAN, TCP/IP), the Megarevo PCS is the ideal solution for businesses seeking efficient, scalable, and secure energy conversion.
