The Story

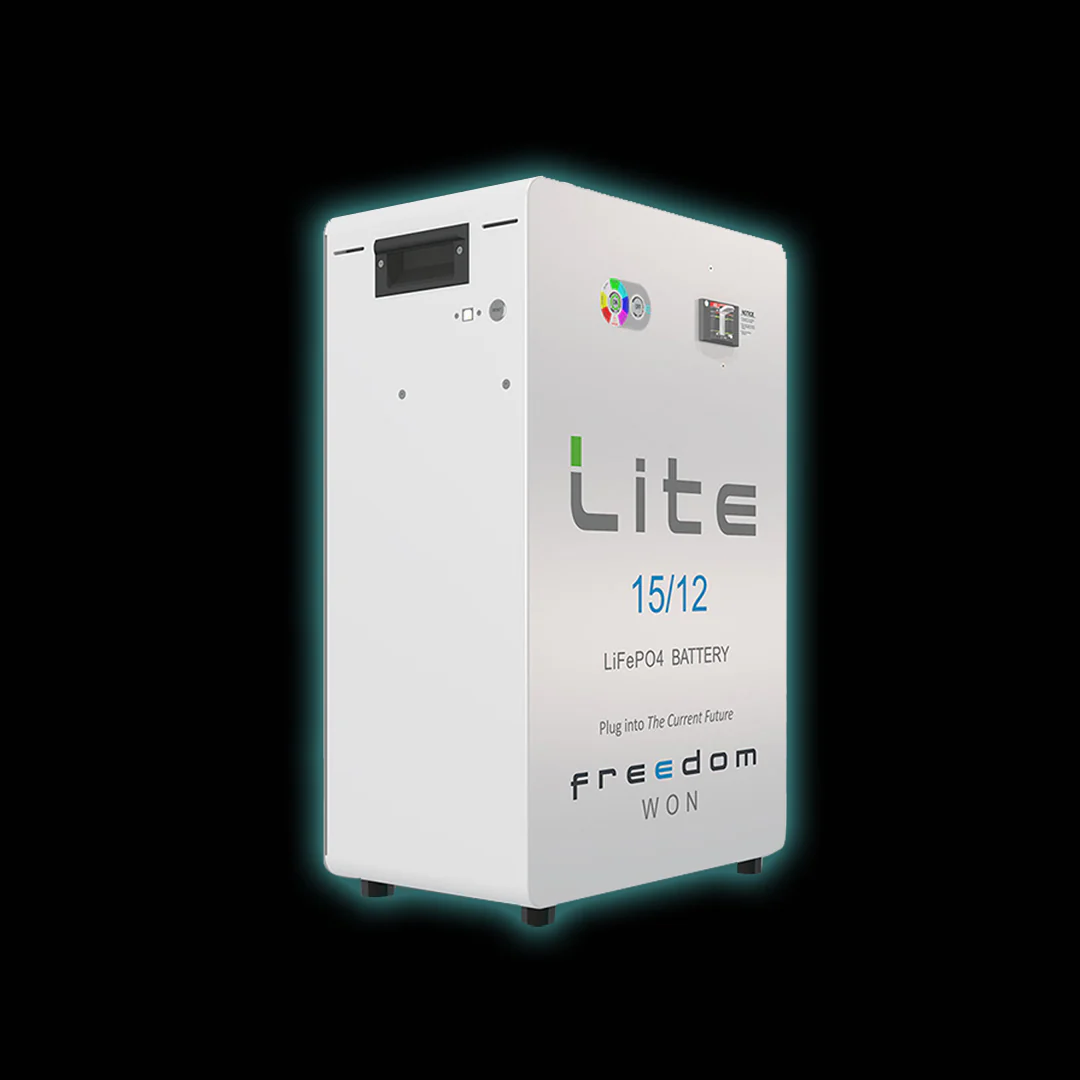

The Freedom Won Lite Home 15/12 is a compact and efficient lithium iron phosphate (LiFePO₄) battery system tailored for residential energy storage. With a total energy capacity of 15kWh and a nominal voltage of 52V, this unit is ideal for use with 48V inverter systems, offering dependable performance, advanced safety features, and long-term durability.
Key Features:
- Energy Capacity: 15kWh total, with 12kWh usable at 80% DoD and 13.5kWh at 90% DoD.
- Voltage Compatibility: 52V nominal (range: 47V to 56V), suitable for 48V inverters.
- Current Capacity: 300Ah with 300A continuous charge and up to 480A discharge.
- Power Output: Up to 24kW discharge and 15kW charge power.
- Durable Enclosure: Aluminium housing rated IP20 for indoor or protected environments.
- Integrated Safety: Shunt trip circuit breaker with BMS-controlled protection for overcurrent, voltage, temperature, and SoC.
- Smart Interface: USB and RJ45 ports for diagnostics and inverter communication, plus LED State of Charge display.
- Long-Term Reliability: 10-year warranty or 4,000 cycles at 80% DoD, with expected service life of over 16 years at 80% DoD and up to 20 years at 50% DoD.
Technical Specifications:
- Nominal Voltage: 52V
- Max Recommended Inverter Power: 15kVA
- Battery Dimensions: 745mm (H) x 490mm (W) x 290mm (D)
- Crated Dimensions: 848mm (H) x 656mm (W) x 509mm (D)
- Weight: 130kg (155kg crated)
- DC Connection: 2 x 50mm² Permopower fly leads per electrode
- Cooling: Natural convection
- Operating Temperature: 0°C to +35°C (recommended), -20°C to +60°C (extreme)
Included Accessories:
- USB “printer” cable for PC connection
- CAN Bus termination resistor (included)
- RJ45 CAN Bus cable (not included; inverter-specific versions may be required)
Applications:
Ideal for solar energy storage, hybrid systems, and backup power solutions in residential environments requiring compact, scalable, and efficient energy storage.
Freedom Won Lite Home 15/12kW 52v Specification Document
