PRICED PER METER

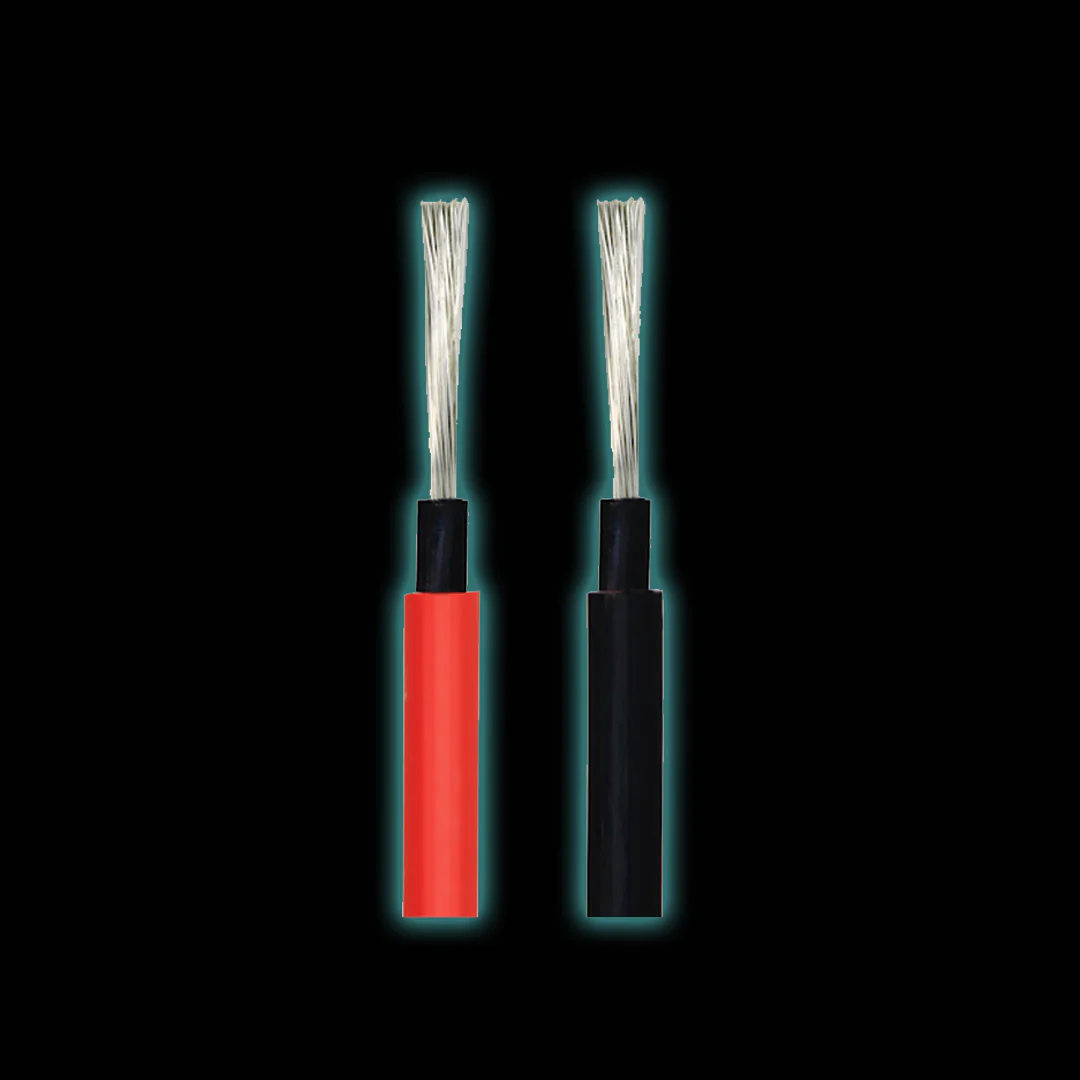

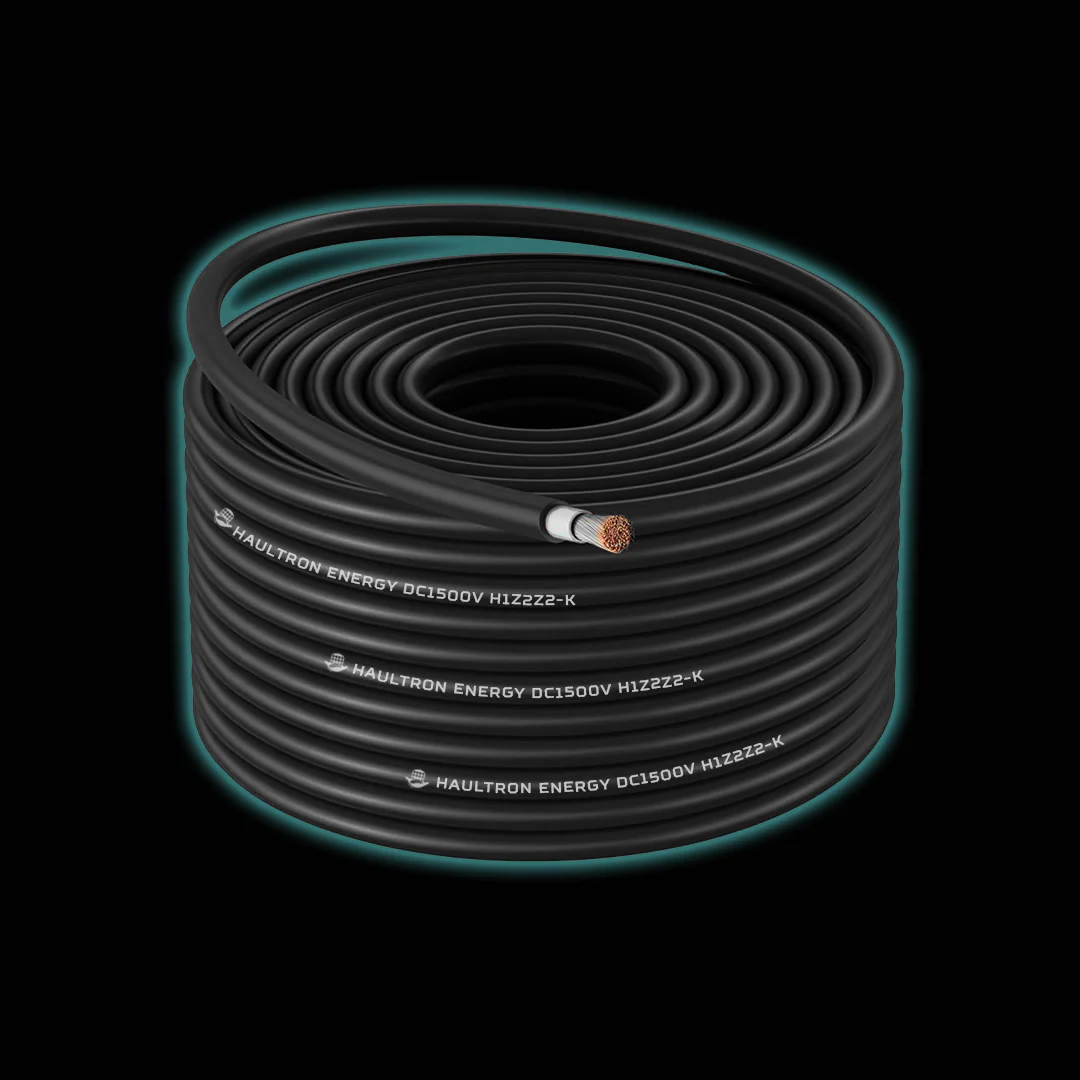

Upgrade your solar installations with Haultron Energy's 6mm Premium PV Copper Cables DC1500V H1Z2Z2-K, engineered for maximum efficiency, durability, and compliance with international standards. Designed for high-voltage photovoltaic applications, these cables deliver exceptional performance in demanding environments.
Key Features:
- High Conductivity: Electrolytic annealed, tinned pure copper (Class 5) ensures minimal energy loss and superior electrical performance.
- Corrosion Resistance: Tinned copper conductors provide enhanced protection in coastal and humid conditions.
- Durable XLPO Insulation & Sheath: Halogen-free, electron-beam cross-linked XLPO offers excellent mechanical and thermal stability.
- Flame & UV Resistance: Certified to EN 60332-1-2 and EN 50289-4-17 standards for fire safety and weather resilience.
- Waterproof & Submersion-Ready: Compliant with EN 50525 AD8 for safe underground and submerged installations.
- Wide Temperature Range: Operates reliably from -40°C to +90°C, with short-term resistance up to 250°C.
- Long Service Life: Designed for up to 25 years of dependable operation.
Technical Specifications:
- Rated Voltage: 1500V DC / 1000V AC
- Conductor Sizes: Available in 6mm² and 10mm²
- Current Capacity: Up to 98A (free in air)
- Insulation Resistance: Up to 500 MΩ·km
- Bending Radius: ≥4×D (D<8mm), ≥6×D (D≥8mm)
Certifications & Compliance:
- IEC 60228 / EN 60228
- EN 50618 / IEC 62930
- CE Certified
- TÜV Rheinland Approved
- SAPVIA Compliant
- Halogen-Free & CPR: Cca Rated
Applications:
- Residential Rooftop Solar Installations
- Commercial Building Cable Trunking
- Industrial Solar Farms
- Direct Underground Burial
- Outdoor Solar Arrays
Ensure long-term reliability and safety with Haultron Energy’s trusted PV cable solution. Ideal for professionals seeking high-quality solar cabling that meets global standards.
Premium PV Copper Cables DC1500V H1Z2Z2-K Specifications Document
