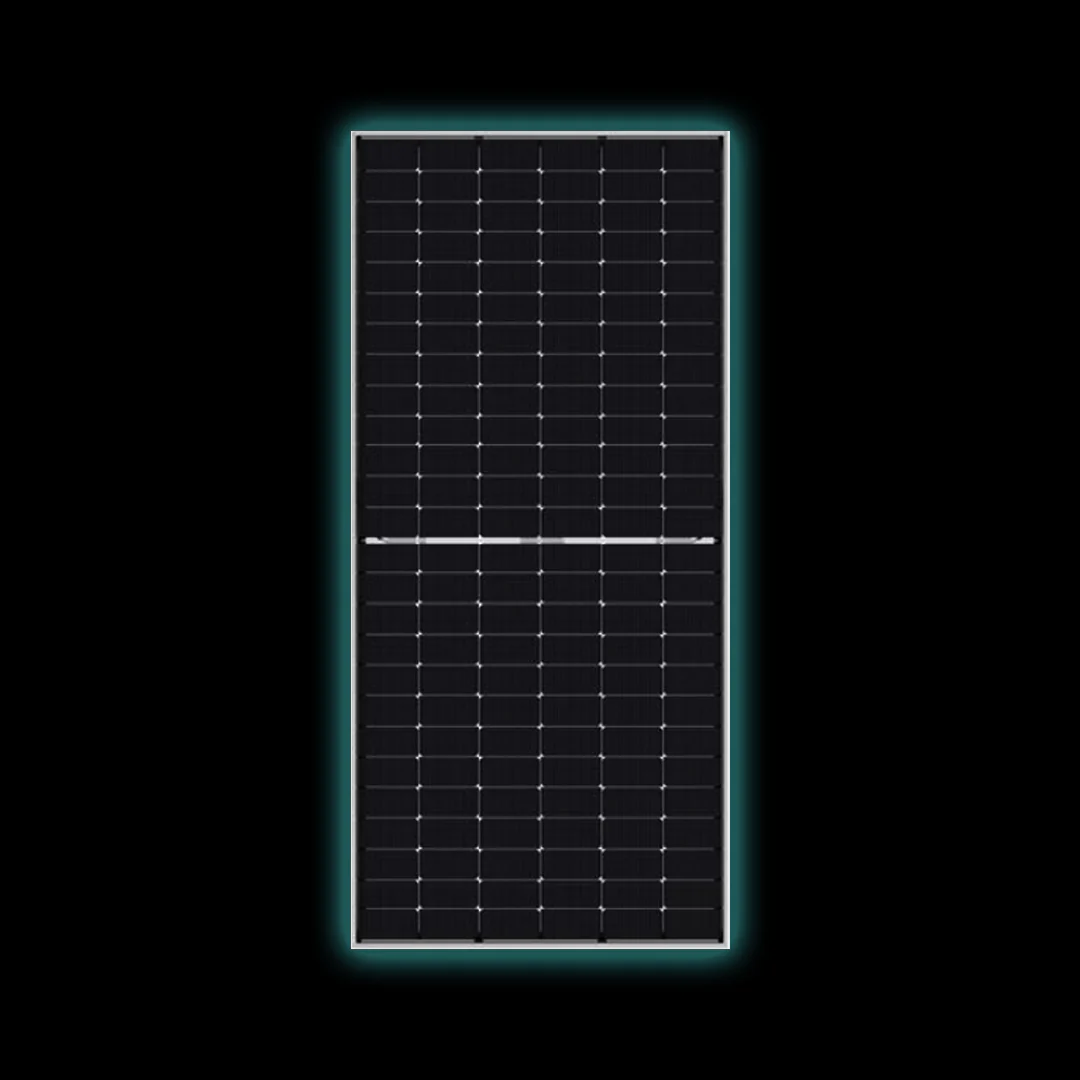

The 620W Jinko Solar Panel is a high‑performance N‑type bifacial photovoltaic module engineered for large‑scale residential, commercial, and utility‑scale solar installations. Built with JinkoSolar HOT 2.0 technology, this panel delivers superior efficiency, long‑term reliability, and increased energy yield compared to conventional P‑type modules.
Designed to generate power from both the front and rear sides, the 620W Jinko bifacial panel maximizes output by capturing reflected light from surrounding surfaces, significantly reducing the levelized cost of energy (LCOE).
Key Features and Benefits
- Ultra‑High Power Output: Up to 620 watts per panel, reducing balance‑of‑system costs
- N‑Type HOT 2.0 Technology: Enhanced efficiency, lower degradation, and improved performance in high temperatures
- Bifacial Dual Glass Design: Additional energy generation from rear‑side irradiation
- Exceptional Durability: Dual 2.0 mm heat‑strengthened glass for long service life
- Low Degradation Rate: Only 0.4% annual degradation, ensuring long‑term energy production
- High Mechanical Strength: Withstands 5400 Pa front load and 2400 Pa rear load, suitable for harsh environments
- Certified Quality: IEC 61215 & IEC 61730 compliant, manufactured under ISO‑certified processes
Technical Specifications
- Model: JKM600–620N‑66HL4M‑BDV
- Maximum Power Output: 620W
- Cell Type: N‑Type Monocrystalline
- Module Efficiency: Up to 22% (STC, model dependent)
- Dimensions: 2382 × 1134 × 30 mm
- Weight: 32.4 kg
- Glass: Dual 2.0 mm anti‑reflection coated glass
- Frame: Anodized aluminum alloy
- Maximum System Voltage: 1500 V DC
- Operating Temperature: −40°C to +85°C
- Connector Type: MC4‑EVO2 compatible
- Fire Rating: Class C
Warranty and Reliability
- Product Warranty: 12 years
- Linear Power Output Warranty: 30 years
- Guaranteed Power After 30 Years: 87.4% of original output
This extended warranty reflects JinkoSolar’s confidence in long‑term module performance and manufacturing quality.
Ideal Applications
- Utility‑scale solar power plants
- Commercial and industrial rooftops
- Ground‑mounted solar systems
- High‑irradiance and reflective environments
Why Choose Jinko Solar?
JinkoSolar is one of the world’s leading solar manufacturers, known for innovation, bankability, and proven performance across global markets. The 620W Jinko Solar Panel combines advanced technology with robust construction to deliver reliable, high‑yield solar energy for decades.
